Let charts wear the host's colors: custom colormaps, a chart palette, and axis switches by Alek99 · Pull Request #298 · reflex-dev/xy

Alek99 · 2026-07-25T23:02:16Z

A chart has to wear the host application's colors. Today it mostly can — chrome
is DOM, so data-xy-slot selectors, class_names, styles, --chart-* tokens,
and custom_css already reach titles, legends, tooltips, ticks, and controls.
But the three decisions that actually dominate how a data-dense chart looks
were closed:

Continuous color was one of twenty preset names. For a density scatter,
hexbin, heatmap, or contour the colormap is the chart, and no amount of CSS
reaches it. A brand ramp was simply not expressible.
Categorical color always used the built-in eight-slot palette. color=labels
had no override at all — not per chart, not per mark.
Hiding axis chrome took seven #00000000/zero-width style properties per
axis. It appears in nearly every example in docs/styling/, which is the tell.

This closes all three.

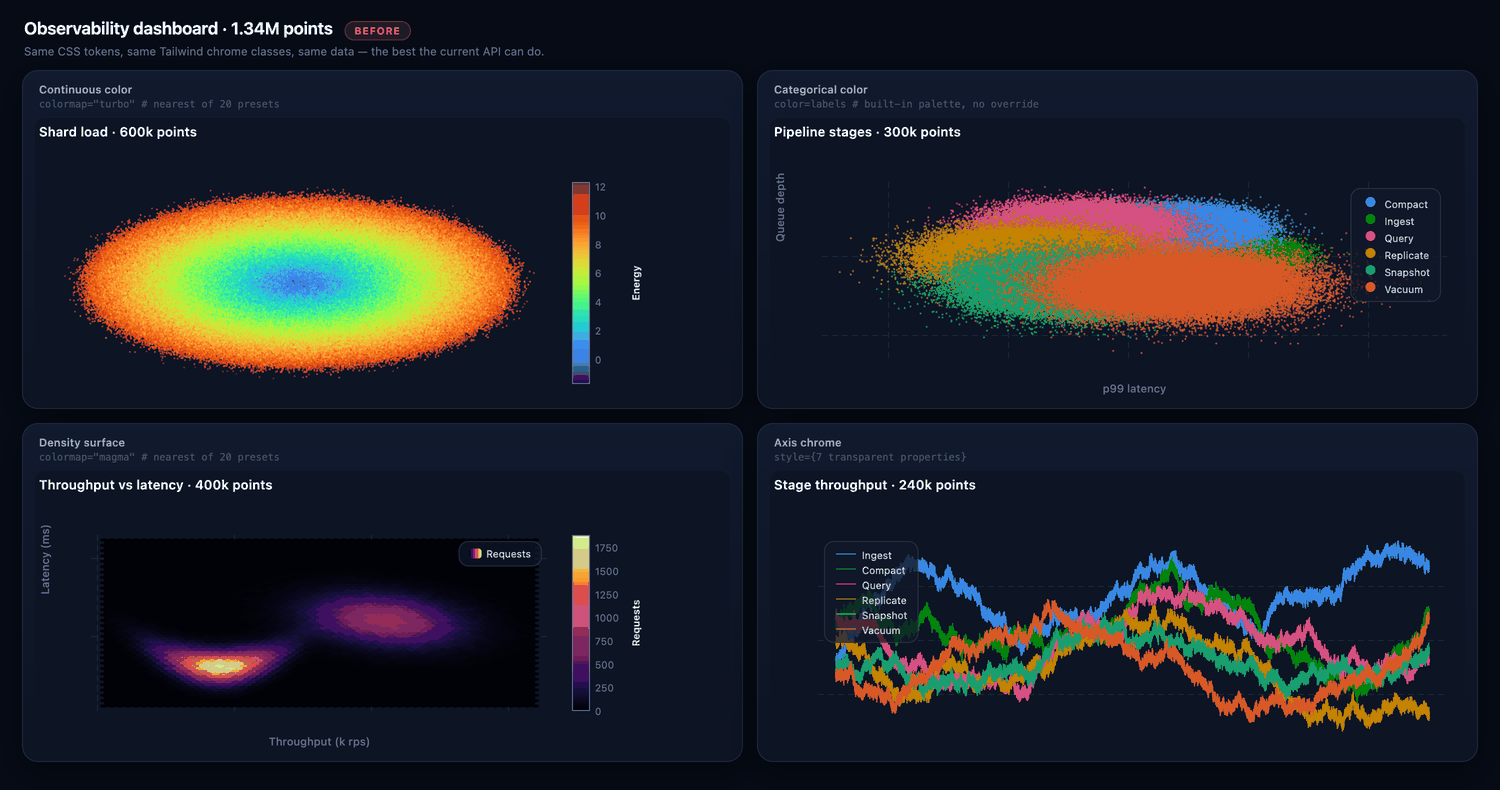

Before — the best the current API can do: nearest of twenty preset
colormaps, the built-in categorical palette, and the seven-property axis
incantation.

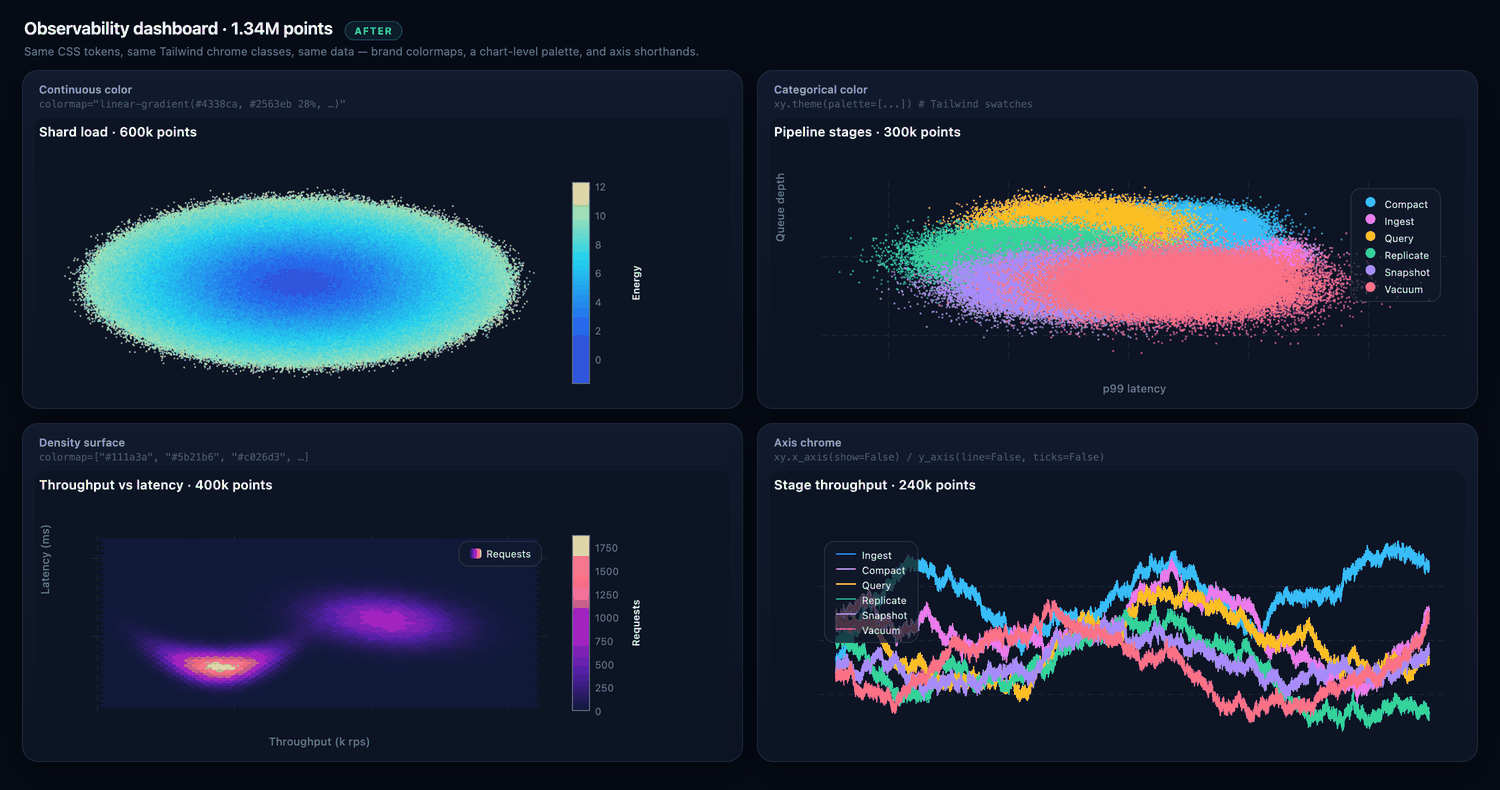

After — same 1.34M points, same custom_css, same Tailwind chrome classes
on class_names; only the three APIs below differ.

`colormap=` takes a ramp, not just a name

BRAND = "linear-gradient(#4338ca, #2563eb 28%, #22d3ee 62%, #fde68a)"

xy.scatter_chart(
    xy.scatter(x, y, color=energy, colormap=BRAND),
    xy.colorbar(title="Energy"),
)

Three input forms, all equivalent:

Form	Example
A sequence of CSS colors, evenly spaced	`["#111a3a", "#5b21b6", "#c026d3", "#fde68a"]`
`(position, color)` pairs	`[(0.0, "#f8fafc"), (0.2, "#38bdf8"), (1.0, "#0f172a")]`
A CSS gradient	`"linear-gradient(#0b1220, #2563eb 30%, #fde68a)"`

channels.resolve_colormap normalizes every form to evenly spaced 8-bit RGB
stops — the exact shape js/src/10_colormaps.ts already stores the built-in
tables in. That is the whole design: it means the WebGL client, _svg.py, and
_raster.py keep one LUT interpolation path between them instead of three, and
colorbars and legend gradient swatches follow the ramp for free. Uniform input
ships its own stops (4 colors → 4 stops); positioned input resamples onto the
LUT's own 256 texels, so the round trip is exact rather than approximate.
Resolution is idempotent, so a mark that validates its own colormap= can hand
the canonical form straight to resolve_color.

Ramp stops must resolve without a browser — hex, rgb(), hsl(), or a named
color — and must be opaque. var(), oklch(), color-mix(), and translucent
stops raise, naming that reason. A colormap becomes a LUT in three renderers
and only one of them has a cascade, so accepting a browser-only color would mean
the screen showed one ramp and to_png() silently showed a fallback. Alpha is
refused for the same class of reason: a LUT carries none, so ["transparent", "#00f"] would quietly become an opaque black→blue ramp. Use the mark's
opacity/fill-opacity instead. var() stays legal on color=, stroke, and
fill, where one color paints one mark.

`xy.theme(palette=[...])` sets the categorical cycle

xy.theme(palette=["#38bdf8", "#e879f9", "#fbbf24", "#34d399", "#a78bfa", "#fb7185"])

One cycle drives both unnamed series colors and the colors a categorical color=
channel assigns to its categories. It lands on Figure.palette before any mark
applies — a trace bakes its color at build time, so ordering is load-bearing —
and is carried on each ColorChannel so shipping, density re-binning, the legend,
and the static exporters all read one source instead of reaching for the module
default. It rides the spec as a top-level palette, the indexed fallback the
static exporters use. An explicit color= on a mark still wins; a palette
shorter than the series/category count repeats with a warning, as the built-in
one already did.

Entries follow the same literal-color rule as colormap stops, plus a sharper
reason of their own: a palette is indexed, so several var() entries would all
land on one fallback and merge distinct categories into a single indistinguishable
color. Named colors, rgb(), and hsl() are all accepted and normalized to hex
on the wire — not merely validated. The client's only cascade-free decode is
hexColor; shipping tomato verbatim sends it to a getComputedStyle probe,
which returns "" while the chart root is still detached (notebook webviews
attach asynchronously), yielding black — and permanently, because a cached palette
LUT is rebuilt only on GL context loss.

Axis visibility switches

xy.x_axis(show=False)                      # was: seven style properties
xy.y_axis(show=False, grid=True)           # horizontal guides only
xy.x_axis(line=False, ticks=False)         # labels, no baseline or ticks

show, line, ticks, grid, and text compile to the same validated axis
style properties, so they need no renderer support and work identically in HTML,
SVG, and native PNG. show is the default for the other four and each overrides
it in both directions. An explicit style= property still outranks a switch — a
switch is a default, not a lock. Unset switches emit no style at all, so specs
that don't use them stay byte-identical.

text is deliberately not named labels: that would read as a sibling of
tick_labels, which supplies the label strings, and it also collides with a
local inside x_axis().

ticks=False sets tick geometry, not tick paint: every renderer resolves the
tick-label color as tick_label_color falling back to tick_color, so blanking
the paint would take the labels with it — the opposite of what the switch means.

Bugs found on the way

_declarative_colorbar_options did "colormap": str(colormap). A custom ramp
reached the colorbar as an unparseable name, so the marks painted the brand
ramp while the colorbar beside them silently painted viridis.
The client's categorical LUT builders (_paletteLut, _paletteLutDimmed,
_densityCellClasses) decoded palette entries with hexColor() only and would
throw on any other CSS color. They now share one _paletteRgb helper.
The density mean-color plane, the SVG writer, and the native rasterizer each
resolved categorical palettes differently — and one of them mapped every
unresolvable entry onto a single shared fallback, merging distinct categories
into one color. All three now share channels.palette_rows_rgba8, which
substitutes per index and warns.
_svg._lut indexed colormap stops through uint8 — safe only while every
colormap had ≤ 11 stops. A resampled ramp ships 256, whose top index is exactly
255; one more would have wrapped to 0 and painted the ramp's dark end at its
bright end. Now int32.
Two stale spec claims corrected: chart-kind-contract.md documented a
ship_channels(..., palette) signature that no longer exists, and the dossier's
constant table called DEFAULT_PALETTE ten entries (it has eight).

Wire protocol 6 → 7

colormap widened from a built-in name to either a name or explicit stops, and
the spec gained an optional palette. A stale cached v6 client indexes its
built-in table with the stop array, misses, and paints viridis without
erroring — the same silent-misrender case v6 itself was cut for. Bumped in
config.py, 00_header.ts, and spec/design/wire-protocol.md §7.

Verification

2390 passed, 4 skipped — including 66 new tests in
tests/test_custom_ramps_and_palette.py covering resolution, all three input
forms, every failure mode and its message, three-renderer parity, palette
threading and hex normalization, per-index degradation, and every axis switch.
The ticks=False test compares rendered pixels rather than style dicts,
because the defect it pins was invisible at the style layer.
ruff check / ruff format --check / pre-commit run --all-files clean;
ty check at 13 diagnostics, the same count as origin/main.
docs/app tests: 91 passed. scripts/abi_smoke.py: 133 checks passed.
The WebGL smoke reports XY_OK on every probe.
Checked by hand in a browser: a custom ramp survives the drill/re-bin path with
no console errors, and to_svg() / to_png() paint the same ramp the canvas
does.

Spec updated in design-dossier.md §36 (the palette/colormap token bullet was
marked pending; the spec-side half is now wired, and the CSS-token half stays
pending), spec/api/styling.md, spec/api/chart-kind-contract.md, and
spec/design/wire-protocol.md §7.

The diff was reviewed by an adversarial multi-agent pass over five disjoint
lenses (colormap resolution, palette threading, the JS client, the axis/API
surface, and spec/doc/test truthfulness), each finding independently refuted by
two skeptics. Every defect above except the colorbar str() came out of that
pass; the surviving high-severity finding was the detached-root palette
resolution, which is what motivated normalizing palettes to hex.
